尝试复现Cloudflare-2025-11-18的故障过程

23 Nov 2025 - Shanghai

attempt to reproduce the cloudflare outage

项目地址

reproduce_cf20251118

部署步骤

s0 - 部署 Clickhouse 集群，并初始化无故障状态

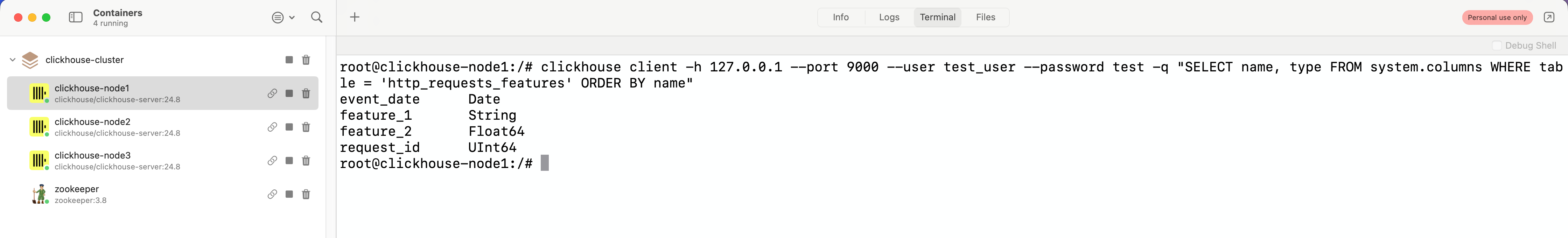

clickhouse-cluster-init

s1 - 部署 KV workers 集群，储存和传播配置文件

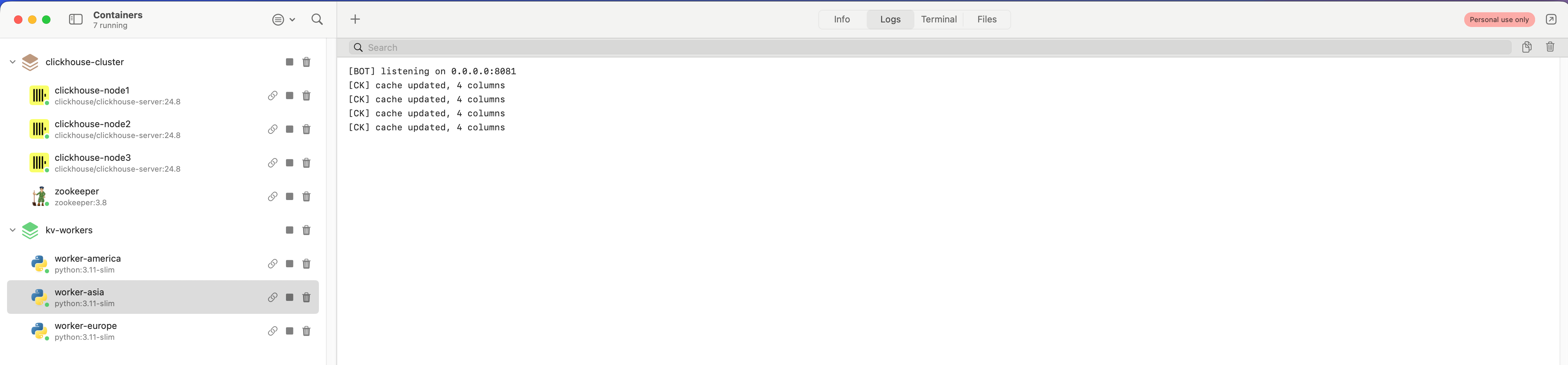

kv-workers-init

s3 - 部署 应用站点和代理服务，包括 FL（ bot-manager 打开/关闭 ）和 FL2

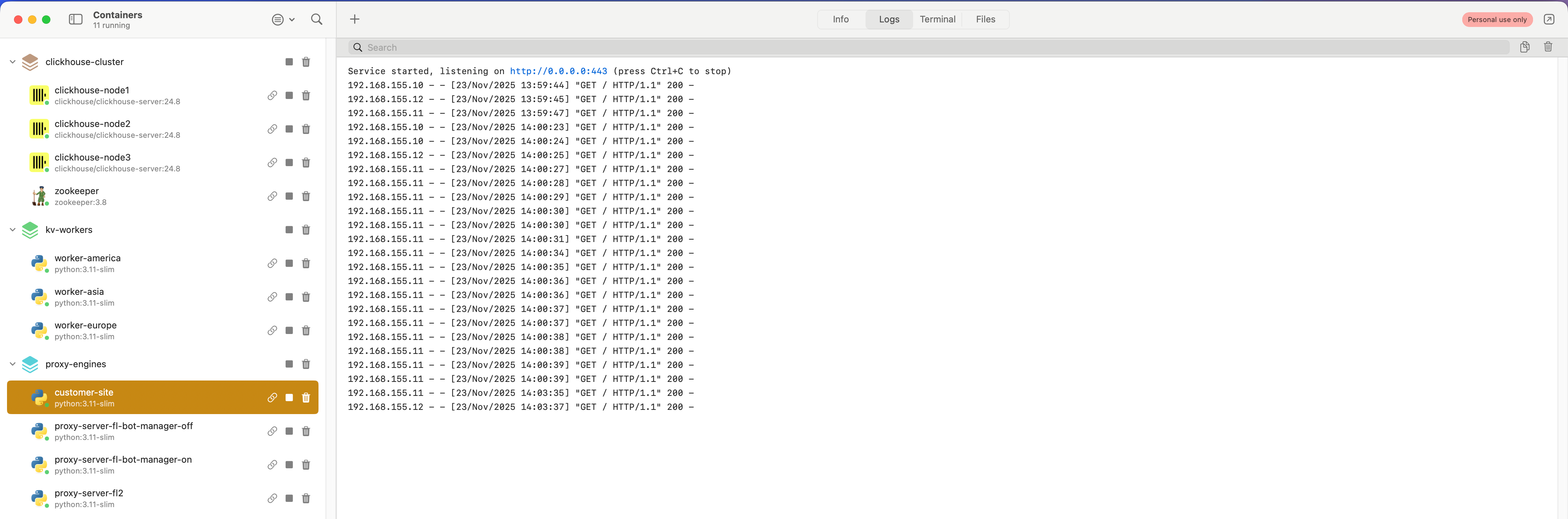

proxy-engines-init

通过3个代理服务都可以访问到用户的站点

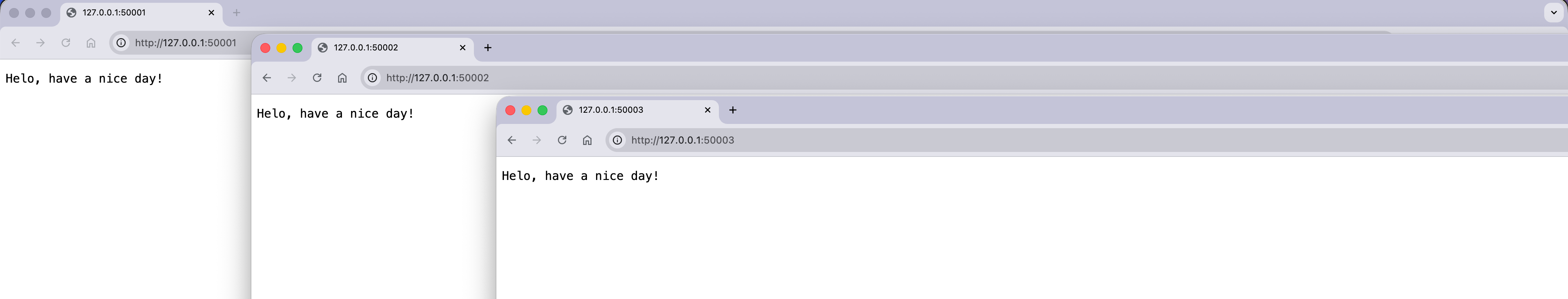

proxy-engines-works

s4 - 部署 模拟用户访问的批量访问

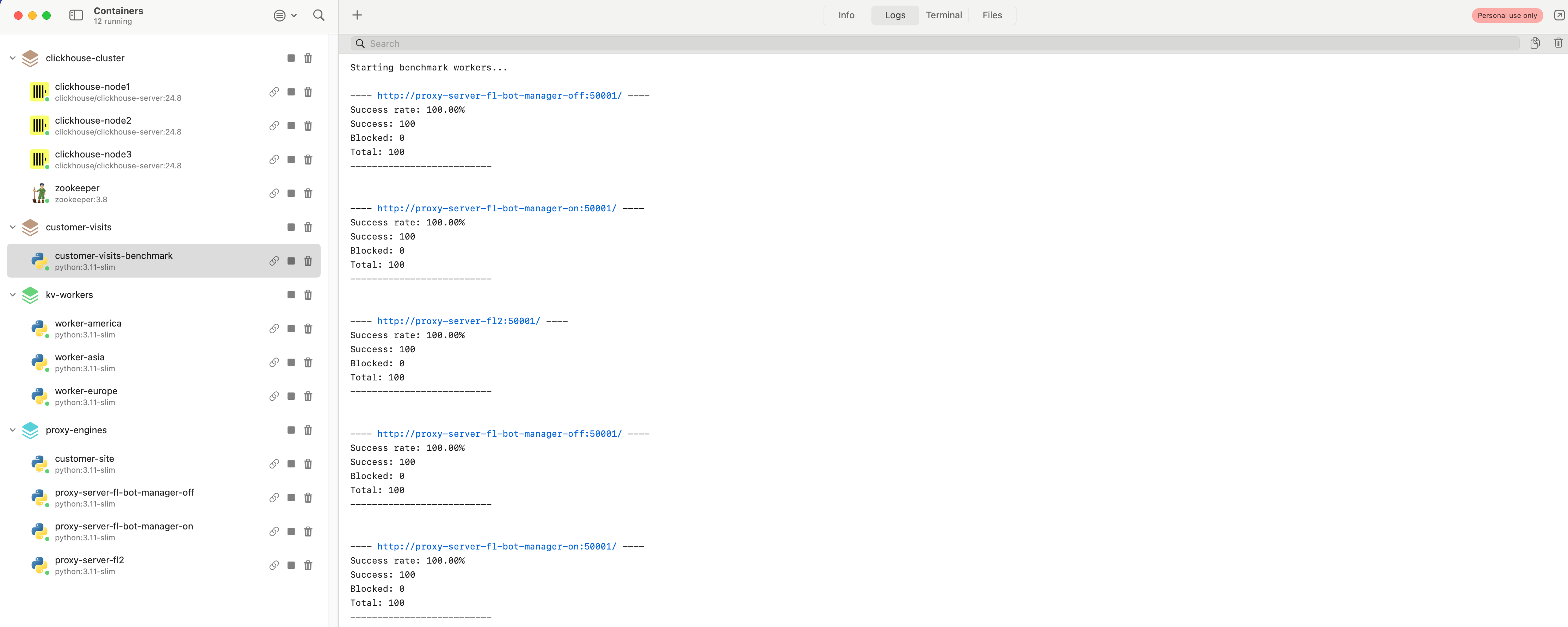

customer-visits-benchmark-init

演示故障

  • 执行 clickhouse 权限变更
clickhouse-node1 :) GRANT SELECT ON r0.* TO test_user;

GRANT SELECT ON r0.* TO test_user

Query id: 5e583e6b-2601-4f12-88f3-163f3ac021dc

Ok.

0 rows in set. Elapsed: 0.003 sec.
  • 观察 workers kv 缓存条目翻倍
[CK] cache updated, 4 columns
[CK] cache updated, 8 columns
  • fl-bot-manager-off未受影响
  • fl-bot-manager-on开始误判机器人访问
  • fl2开始反复crash

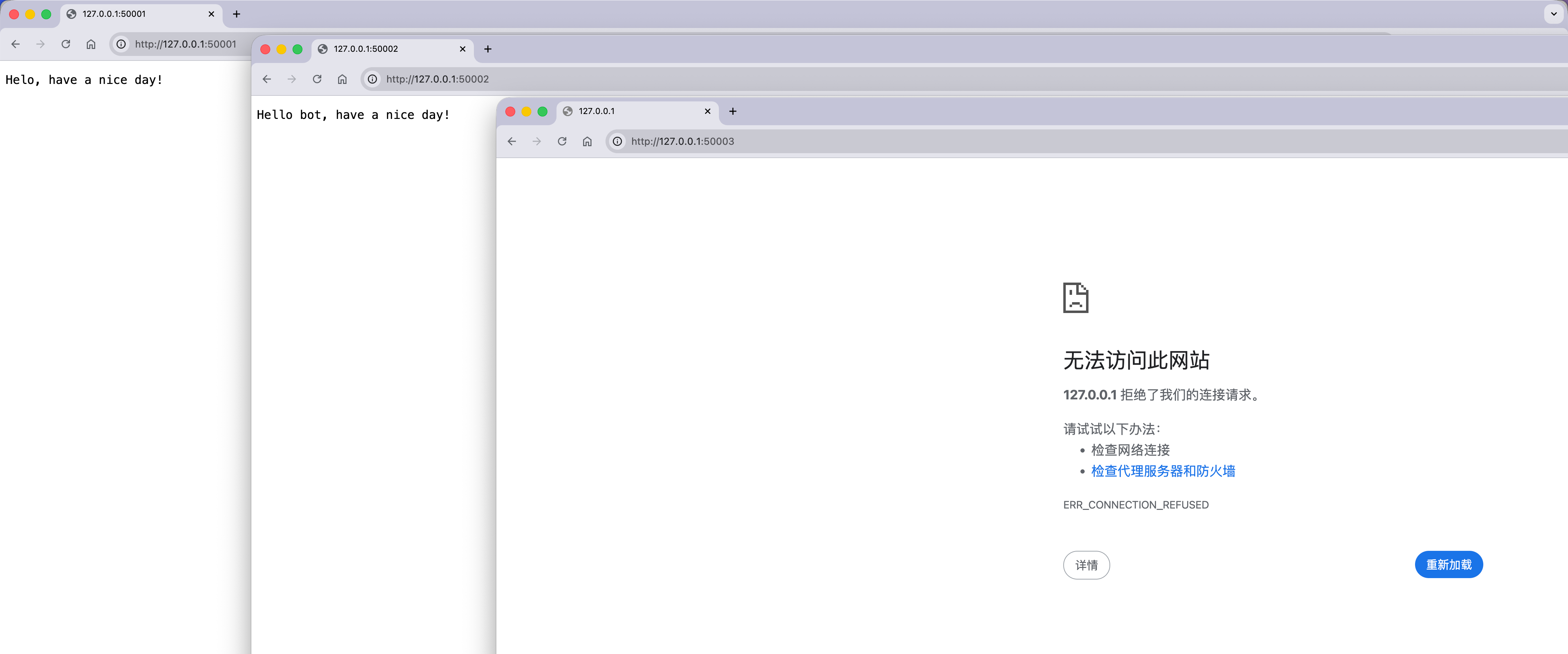

proxy-engines-error

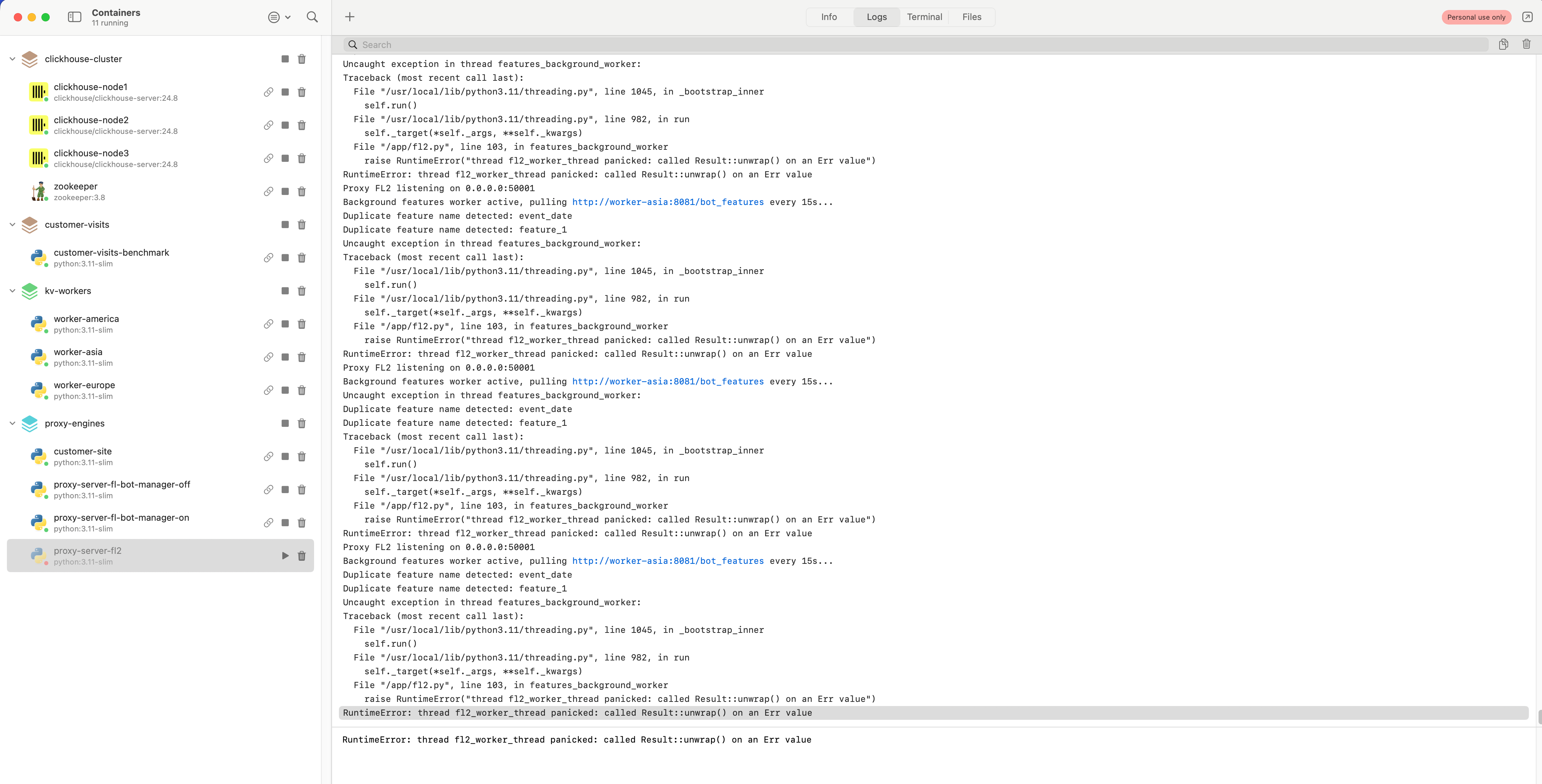

proxy-engines-fl2-crash

  • 客户访问出现大面积失败
---- http://proxy-server-fl-bot-manager-off:50001/ ----
Success rate: 100.00%
Success: 116
Blocked: 0
Total: 116
--------------------------

---- http://proxy-server-fl-bot-manager-on:50001/ ----
Success rate: 0.00%
Success: 0
Blocked: 100
Total: 100
--------------------------

---- http://proxy-server-fl2:50001/ ----
Success rate: 0.00%
Success: 0
Blocked: 106
Total: 106
--------------------------

演示故障恢复

  • 执行 clickhouse 权限变更回滚
clickhouse-node1 :) REVOKE SELECT ON r0.* FROM test_user;

REVOKE SELECT ON r0.* FROM test_user

Query id: 3ebc9b84-5f87-41e1-8fcb-28422bed0dd4

Ok.

0 rows in set. Elapsed: 0.021 sec.
  • 所有访问恢复正常 Helo, have a nice day!
